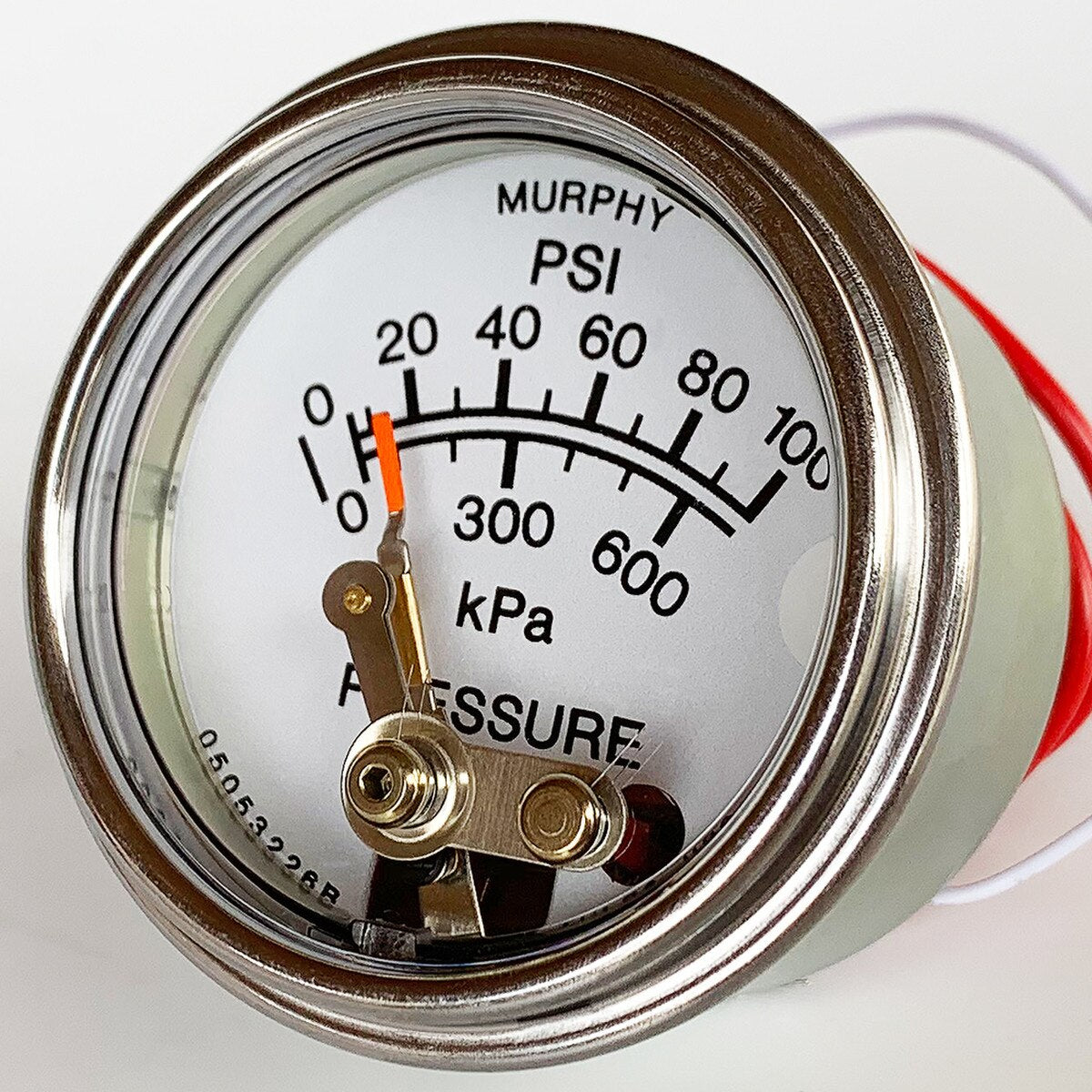

20P-IP1-100 Pressure Swichgage (05703252)

20P-IP1-100: 2" Pressure Swichgage®;  Light Pipe Illumination, 12 VDC; Illumination option (05703252)

IP1 = Light pipe illumination, 12 VDC
Range: 0-100 psi (0-689 kPa)

The Murphy 0-100 PSI Mechanical Pressure Swichgage Light Pipe Illuminated 20P-IP1-100 is a diaphragm-actuated, pressure-indicating gage with a built-in electrical switch. This swichgage is used for tripping alarms and/or shutdown devices. The gage mechanism is enclosed in a steel case coated to resist corrosion. A polycarbonate, break-resistant lens and a polished, stainless steel bezel help protect this rugged, built-to-last instrument. Accuracy and protection from moderate overpressure is assured by a unique, unitized diaphragm chamber. A built-in pulsation dampener helps eliminate pointer flutter and is removable for cleaning.

The gage pointer acts as a pressure indicator and as one switch pole which completes a circuit when it touches the adjustable limit contact. Contacts are grounded through the Swichgage case and have self-cleaning motion to ensure electrical continuity. The gage pointer makes with an adjustable contact to complete a pilot-duty circuit. Specifically designed to protect engines/equipment in oil field, marine, irrigation, construction and trucking applications to monitor engine lube pressure, water pump pressure, hydraulic pressure and air pressure.
