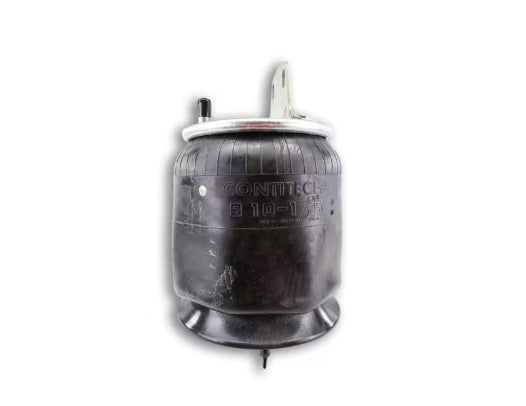

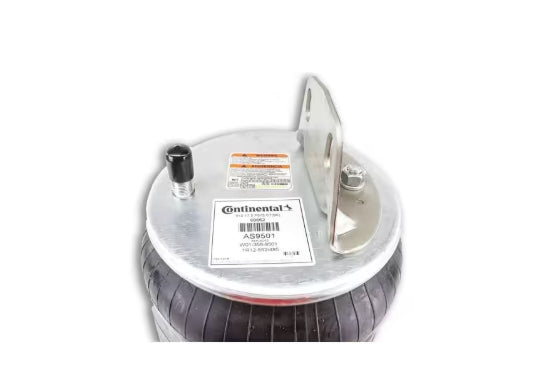

AS9501 ContiTech Air Spring with Braket

Top Plate Diameter:

9.00 in

Piston Height:

7.60 in

Bottom Piston/Plate Diameter:

10.28 in

Air Connection Configuration:

Top - Single

Compressed Height:

9.90 in

Bottom Mounting:

2x stud

Top Mounting:

1x combination stud, 1x L bracket

Air Spring Type:

rolling lobe

Bellows Number:

9 10-17.5
