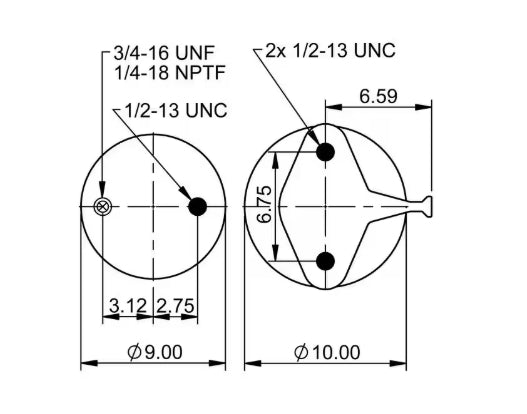

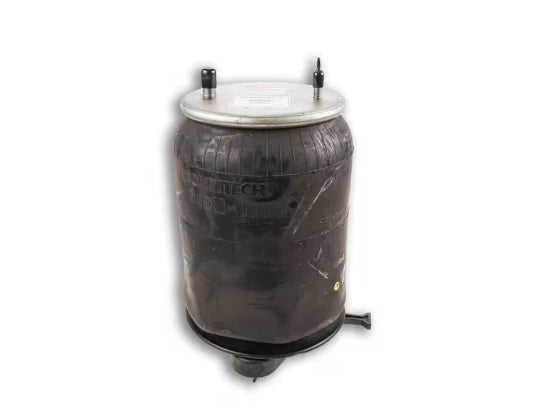

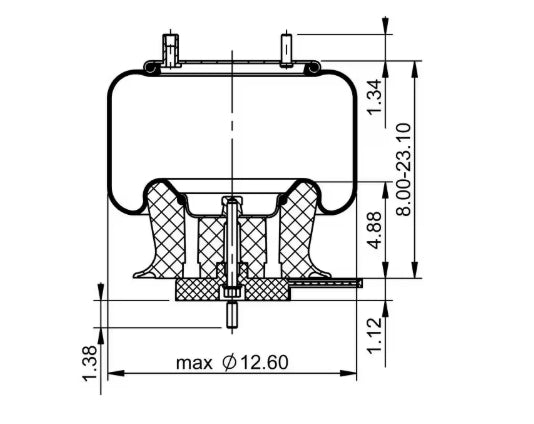

AS9654 ContiTech Air Spring

Top Plate Diameter:

9.00 in

Piston Height:

4.88 in

Bottom Piston/Plate Diameter:

10.00 in

Air Connection Configuration:

Top - Single

Compressed Height:

8.00 in

Bottom Mounting:

Top Mounting:

1x combination stud, 1x stud

Air Spring Type:

rolling lobe

Bellows Number:

9 10-18.5
