Donaldson
SKU:P502015

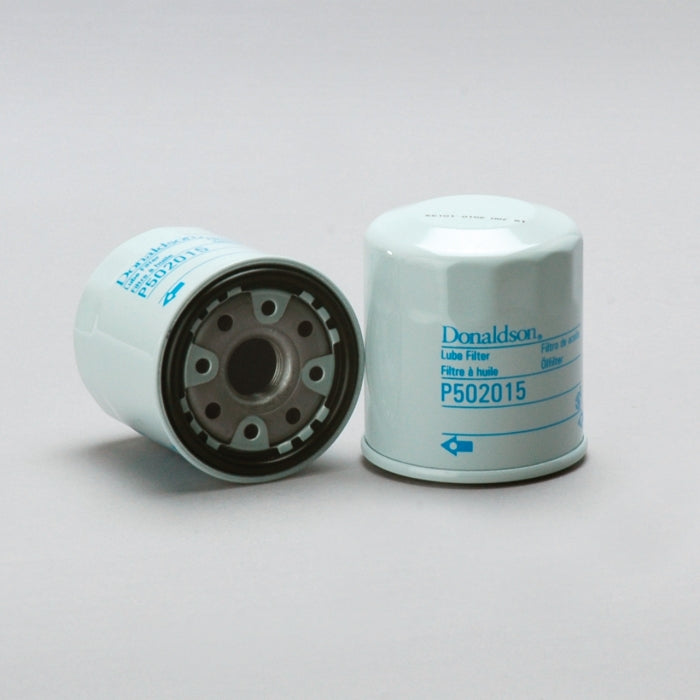

Donaldson P502015 LUBE FILTER, SPIN-ON FULL FLOW
Donaldson P502015 LUBE FILTER, SPIN-ON FULL FLOW
Couldn't load pickup availability
Donaldson P502015 LUBE FILTER, SPIN-ON FULL FLOW
Attributes
| Outer Diameter | 2.56 inch (65 mm) |
| Thread Size | 3/4-16 UN |
| Length | 2.91 inch (74 mm) |
| Gasket OD | 2.49 inch (63.2 mm) |
| Gasket ID | 2.19 inch (55.5 mm) |
| Efficiency 50% | 20 micron |
| Efficiency Test Std | JIS D 1611 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 12 psi (0.8 bar) |
| Bypass Valve Setting HR | 15 psi (1 bar) |
| Media Type | Cellulose |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Full-Flow |
| Style | Spin-On |
| Price Type | F |
| Primary Application | TOYOTA 9091503001 |
Cross Reference
|
Manufacturer |
Manufacturer Part # |
|
A P PARTS |
AP3568 |
|
AC DELCO |
X72 |
|
AGCO |
77201898 |
|
ALCO |
SP1008 |
|
ALCOA MARINE |
TO137 |
|
ALFA ROMEO |
114212580390 |
|
ALLIS-CHALMERS |
721014983 |
|
ALLOY |
ABH966 |
|
AMERICAN MOTORS CORPORATION |
SFO1001 |
|
AMERICAN PARTS |
2055 |
|
AMSOIL |
EAO09 |
|
ARMAFILT |
O77904 |
|
ASAHI |
723K |
|
ATLAS |
G80 |
|
AUTO PAR |
FE308 |
|
AUTO PRIDE |
CF410AP |
|
BALDWIN |
B228, B33 |
|
BIG A |
92288 |
|
BMW |
11421267597 |
|
BOBCAT |
6513601 |
|
BOSCH-REXROTH |
OF107 |
|
BRIGGS & STRATTON |
820314 |
|
CAM2 |
C4476 |
|
CASE/CASE IH |
C122 |
|
CASITE |
CF410 |
|
CATERPILLAR |
2I8660 |
|
CHAMP |
PH2821 |
|
CLARK |
6513601 |
|
CLEAN |
DO217 |
|
CLUB CAR |
1016467 |
|
CONOCO |
CN2951 |
|
COOPERS |
Z525 |
|
CROSLAND |
691 |
|
CUB CADET |
ME122073702 |
|
CUSHMAN |
833438 |
|
DAEWOO |
D490652 |
|
DAIHATSU |
1560187205000 |
|
DANIEL DOYEN |
DOF8102 |
|
DENSO |
1501000 |
|
DEUSCH |
D368 |
|
DITCH WITCH |
194108 |
|
DONIT |
4310105 |
|
DRESSER |
78641C1 |
|
E-Z GO CAR |
607454 |
|
ECHLIN |
OF50 |
|
EXMAN |
W6880 |
|
FACET |
966 |
|
FAMEL |
FT4888 |
|
FEDERAL MOTORS |
FMS2167 |
|
FEDERATED |
LF410F |
|
FIAAM |
FT4756 |
|
FIAT |
4469396 |
|
FIL |
ZP507 |
|
FILT |
FF425EC |
|
FIRESTONE |
TF346 |
|
FLEEGUARD |
LF3614 |
|
FORD |
FONN6714BA |
|
FSA |
FO1036 |
|
GEHL |
611990 |
|
GENERAC |
070185D |
|
GIF |
GL347 |
|
GOODYEAR |
2224523 |
|
GRANT |
PH2840 |
|
GRAVELY |
43594 |
|
GREYFRIARS |
970S |
|
GROUP 7 |
V183 |
|
GUD |
Z152 |
|
GUIOT |
GH4600 |
|
GULF |
GF209 |
|
HYSTER |
3000059 |
|
IAPCO |
OF1 |
|
IHI |
OE28 |
|
INTERNATIONAL |
78641C1 |
|
ISEKI |
62132400020 |
|
JOHN DEERE |
AM105172 |
|
JOY |
LT4FILTER |
|
KAWASAKI |
ET15499 |
|
KENDALL |
K33 |
|
KHD |
1163420 |
|
KNECHT |
OC25 |
|
KOEHRING |
5710631 |
|
KOHLER |
359771 |
|
KOMATSU |
Z141520801B01 |
|
KRALINATOR |
L33 |
|
KUBOTA |
490652074 |
|
LAZORLITE |
U111570 |
|
LEE ENGINEERING |
LF28 |
|
LEYLAND-DAF (LDV) |
3H2135 |
|
LISTER PETTER |
20155373 |
|
LOCKHEED |
LK3840 |
|
LPM |
05731725L1000 |
|
LUCAS |
F664 |
|
MANITOU |
554487 |
|
MASTE |
DK51 |
|
MECHANICS CHOICE |
MOF4967 |
|
MERCEDES-BENZ |
11421276850 |
|
MISFAT |
12313102 |
|
MORBARK |
29134122 |
|
NEW HOLLAND |
490652078 |
|
NISSAN/UD TRUCKS |
1520801B15 |
|
NKK |
4TP119 |
|
ONAN |
122073703 |
|
OPEL |
650352 |
|
ORENSTEIN & KOPPEL |
103959 |
|
PHILLIPS 66 |
PO1394 |
|
PMC |
PE811 |
|
POWER BOSS |
303662 |
|
POWER-FLO |
SL14476 |
|
PRO GAUGE |
PGO4476 |
|
PRO-TEC |
154 |
|
PRONTO |
PO4476 |
|
PURFLUX |
LS155 |
|
QUAKER STATE |
QS2951 |
|
ROCKHILL |
61394 |
|
SEARS |
TP26 |
|
SECURITY |
PH2840 |
|
SHELL |
SH525 |
|
SOPARIS |
CV395 |
|
STENSELE |
54067 |
|
STRUEVER |
1163420 |
|
SUBARU |
2486580100 |
|
SULLAIR |
400064 |
|
SUNOCO |
O24 |
|
SUZUKI |
1651073002 |
|
TAKEUCHI |
T1903900216 |
|
TECALEMIT-TJ |
FB2063 |
|
TECHNOCAR |
R83 |
|
TEHO |
OK75 |
|
TENNANT |
2486580100 |
|
TEREX |
103959 |
|
TEXACO |
TFC521 |
|
TIM |
9Y4492 |
|
TORO |
1083842 |
|
TOYOTA |
90915YZZA5 |
|
UNION 76 |
PF2874 |
|
UNION CITY BODY |
C170 |
|
UNIPART |
GFE246 |
|
UNOCAL |
PF53 |
|
V.A.G. |
035115591 |
|
VERMEER |
180005593 |
|
VIC |
C106 |
|
VMC |
LF502015 |
|
VOLKSWAGEN |
035115591 |
|
VOLVO |
35115591 |
|
WAKO |
LO425K |
|
WALGAHN-MOTORENTECHN |
00811314 |
|
WARNER & SWASEY |
WPH2840 |
|
WARTSILA |
O791003 |
|
WAUKESHA |
208203 |
|
WESTERBEKE |
35595 |
|
WIPAC |
CA127 |
|
WIX |
51394, 51394XP |
|
WORLDPARTS |
W27320 |
|
XSV |
X4477 |
