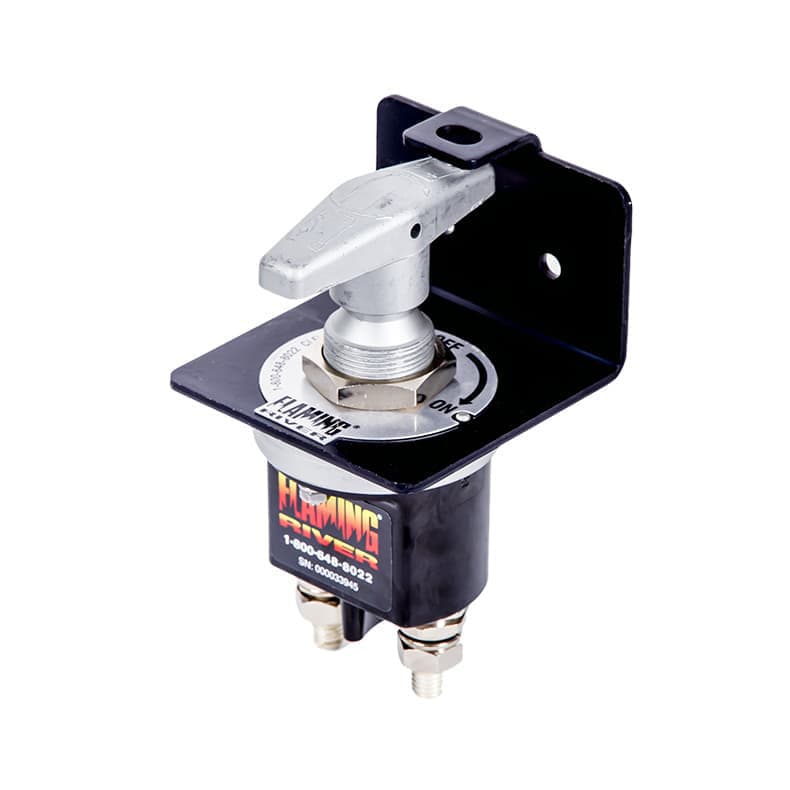

FR1044 The Big Switch with Lock-Out and XL Terminals

The Big Switch is a heavy-duty Battery Disconnect Shut-off Switch with increased terminal space rated at 250 Amps continuous service and 2500 Amps for 5 second intervals (12V/24V). The Big Switch is manufactured with silver plated electrical contacts and with a completely sealed, waterproof design, is able to withstand the most severe operating conditions.

We back the quality of this switch with a three (3) year warranty. This Big Switch comes with a lock-out bracket which enables a padlock to be inserted in the "OFF" position to comply with OSHA lock-out/tag-out regulation 1910.147. This prevents theft and accidental activation during equipment maintenance.
