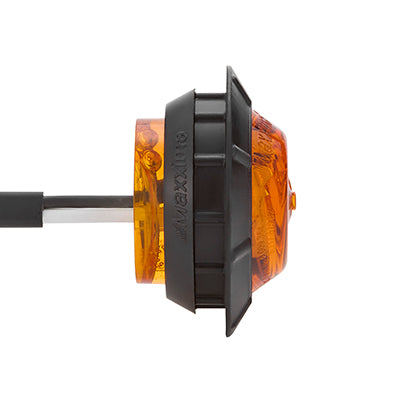

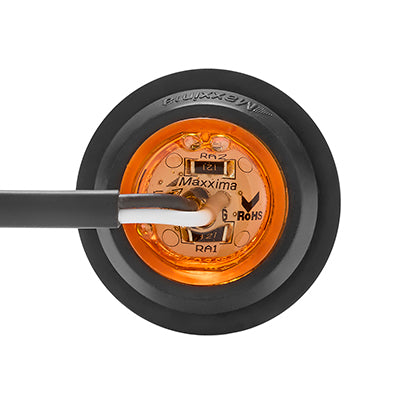

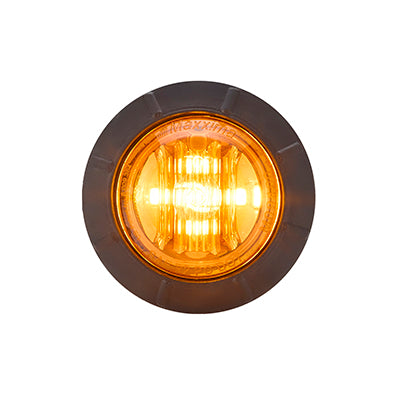

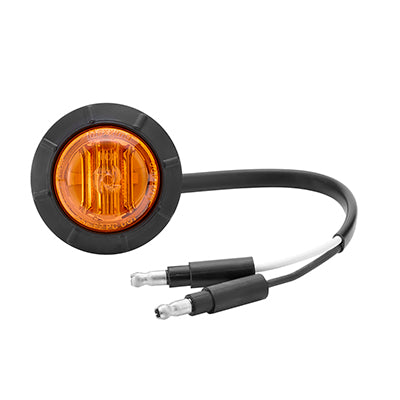

M09400Y 1.25" Round P2/P3/PC2 Clearance Marker Amber

Description

Description:

The M09400Y is a 1.25” grommet mounted amber clearance marker lamp. With 6 red LEDs behind a domed lens, it provides a wide 180-degree horizontal beam for maximum visibility. These 6 LEDs, combined with our patented Lightning Lens Optic, make it the brightest in the industry. It complies with P2 P3 and PC2 DOT requirements.  It includes the mounting grommet which requires a 1-3/8" hole.  This light features a polycarbonate lens & housing and is backed by a 5-year warranty.

Features & Benefits:

• Includes Mounting Grommet
• Requires 1-3/8" Hole
• 180° Visibility - PC/PC2 Rated
• Patented Lightning Lens Optic
• US Patent No 8,009,364
• US Patent No 8,717,679 B2
• Also Available in Amber Clear Lens (M09400YCL)
• Optional Steel Bezel (M50118)
• Polycarbonate Lens & Housing
• 5 Year Warranty

Specifications:

• LEDs 6
• Voltage 12.8VDC
• Amp Draw 40mA
• Dimensions 1.25” Diam. x 1.0” H
• Mounting Grommet, 1-3/8” Hole
• Connector 2 Jacketed Leads, .180 Bullets, 7"
• Legal Heading P2 P3 PC2
• DOT/SAE J592 J2042
