M16280RCL 2-1/2” Round Clearance Marker P2/P3 Red Clear Lens

Description

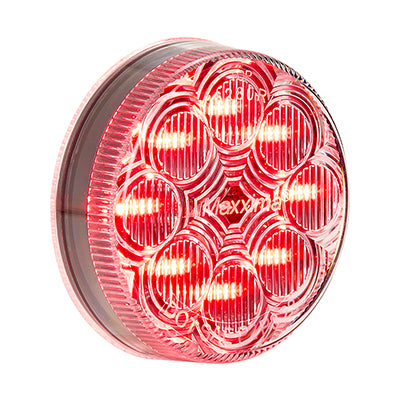

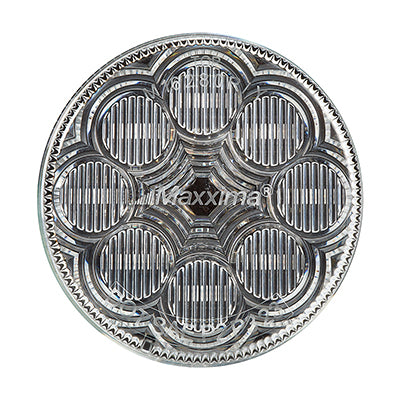

The M16280RCL is 2.5” round red, clear lens, clearance marker lamp. It fits industry standard 2.5” grommets like the M50100-B (sold separately) and has an integrated PL-10 connector compatible with M50950 (sold separately).  The Vantage Series lens design provides maximum visibility and this lamp complies with P2 P3 DOT requirements. This light features a polycarbonate lens & housing and is backed by a 5-year warranty.

Features & Benefits:

• Also Available in Red and Amber Lens (M16280R & Y)
• Fits 2.5” Grommets (M50100-B Sold Separately)
• Integrated PL-10 (M50950 Sold Separately)
• Polycarbonate Lens & Housing
• 5 Year Warranty

Specifications:

• LEDs 8
• Voltage 12.8VDC
• Amp Draw 40mA
• Dimensions 2.5” Diam. x 0.8” D
• Mounting Grommet

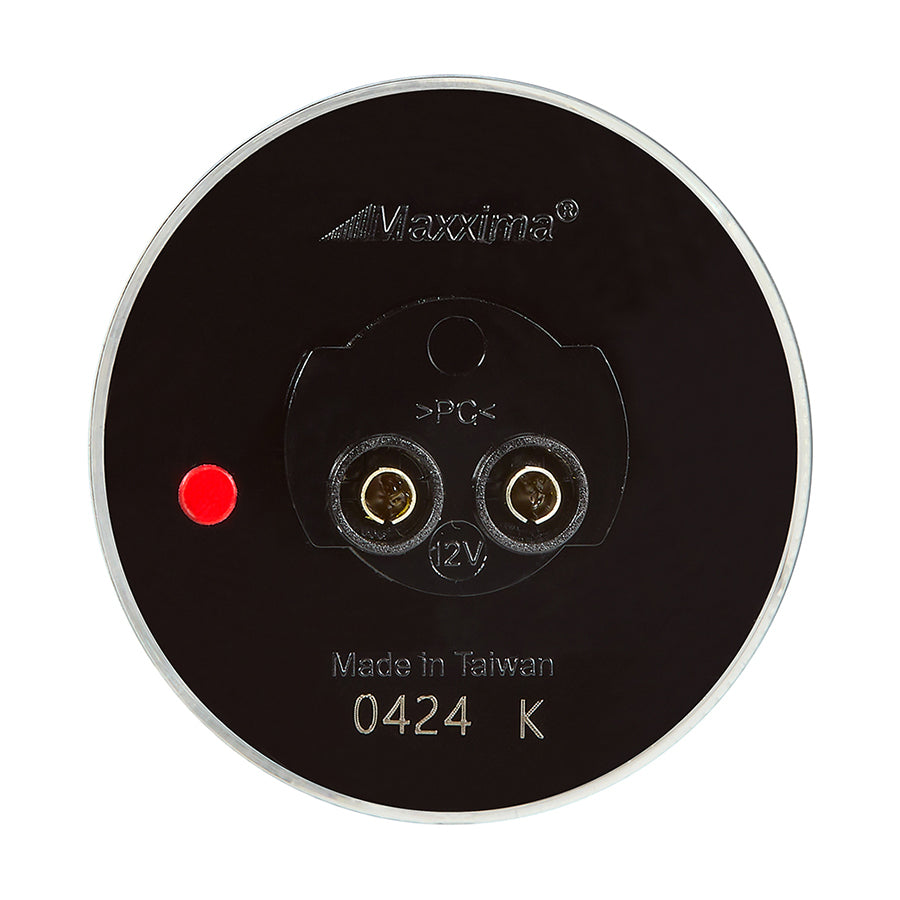

• Connector PL-10
• Legal Heading P2 P3
• SAE J592 J2042
