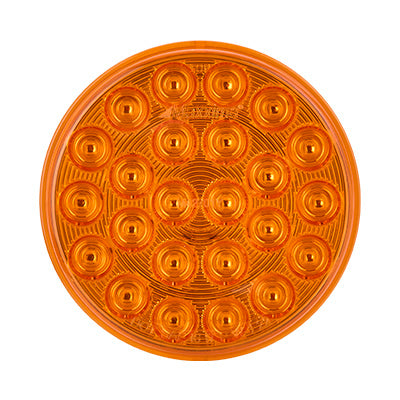

M42701Y 4” Round Amber Flashing LED Warning, 8 Selectable Patterns

Description

The M42701Y is a high-performance 4" round amber LED warning light designed for demanding fleet, utility, and roadside applications. Built to meet SAE J595 Class 1 and California Title 13 requirements, this light delivers powerful visibility with 8 selectable flash modes (7 flash patterns plus 1 steady-on mode).

Its compact form factor fits any standard 4" grommet mount and features an integrated PL-3 connector with a dedicated pattern select lead for easy installation and syncing. Whether used alone or in synchronized multi-light setups, the M42701Y ensures consistent performance in any 12 or 24-volt system.

Sealed against the elements and backed by a 5-year warranty, this light is a durable and compliant solution for professional-grade warning applications.

FEATURES & BENEFITS

• High-visibility Amber LED Warning Light
• 7 Selectable Flash Patterns plus 1 Steady Mode
• Synchronization capable with alternate/sync wiring provisions
• SAE J595 Class 1 compliant (Amber)
• California Title 13 compliant
• Fits standard 4" round grommet mounting (Grommet M50400-B sold separately)
• Integrated PL-3 connector plus one additional lead (11" wire length)
• Operates on 12/24VDC dual voltage
• 5-Year Warranty

SPECIFICATIONS

• Voltage: 12/24V DC
• Amp Draw: Max 0.9A @ 12V
• LED Count: 24
• Flash Patterns: 7 flash + 1 steady (8 total)
• Mounting: 4" round grommet mount
• Dimensions: 4.2" diameter x 1.6" depth
• Connector: Integrated PL-3 + 1 leads (11" wire length)
• Certifications: SAE J595 Class 1 (Amber), CA Title 13
• Warranty: 5 years
