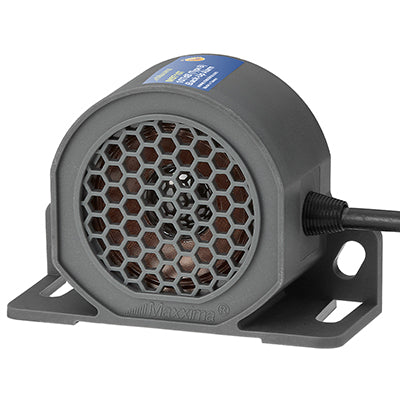

M97107 107dB Back-up Alarm, Hard Wired

The M97107 is a 107dB back-up alarm. It is SAE J994 compliant, Type C rated and features a single tone at a frequency of 1,250Hz. The electrical connection features a jacketed cable with two leads, blunt cut. It has a rugged reinforced nylon housing, and is backed by a 2-year warranty.

Features & Benefits:

• SAE J994 Complaint Back-Up Alarm, 107dB
• Available in 4 Models: Fixed 97bB, 102dB, 107dB, And Self-Adjusting from 82dB to 102dB
• 12-80VDC Multi-Voltage
• Wire Strain Relief & Jacketed Cable - 2 Leads, Blunt Cut Wires
• Temperature Range -40°F to + 185°F (-40°C to + 85°C)
• Reinforced Nylon Housing
• 2 Year Warranty

Specifications:

• Voltage: 12-80VDC Multi-Voltage
• Amp Draw: Max 0.4A 12V / 0.2A 24V
• Dimensions: 4.0″W x 2.8″H x 1.6″D
• Mounting: 2 Hole Surface 3.25″ C to C
• Connector: 2 Jacketed Wires, Blunt Cut, 11″
• Legal Heading: Type C
• SAE: SAE J994
