Maxxima
SKU:MHLE-4X6LO-A

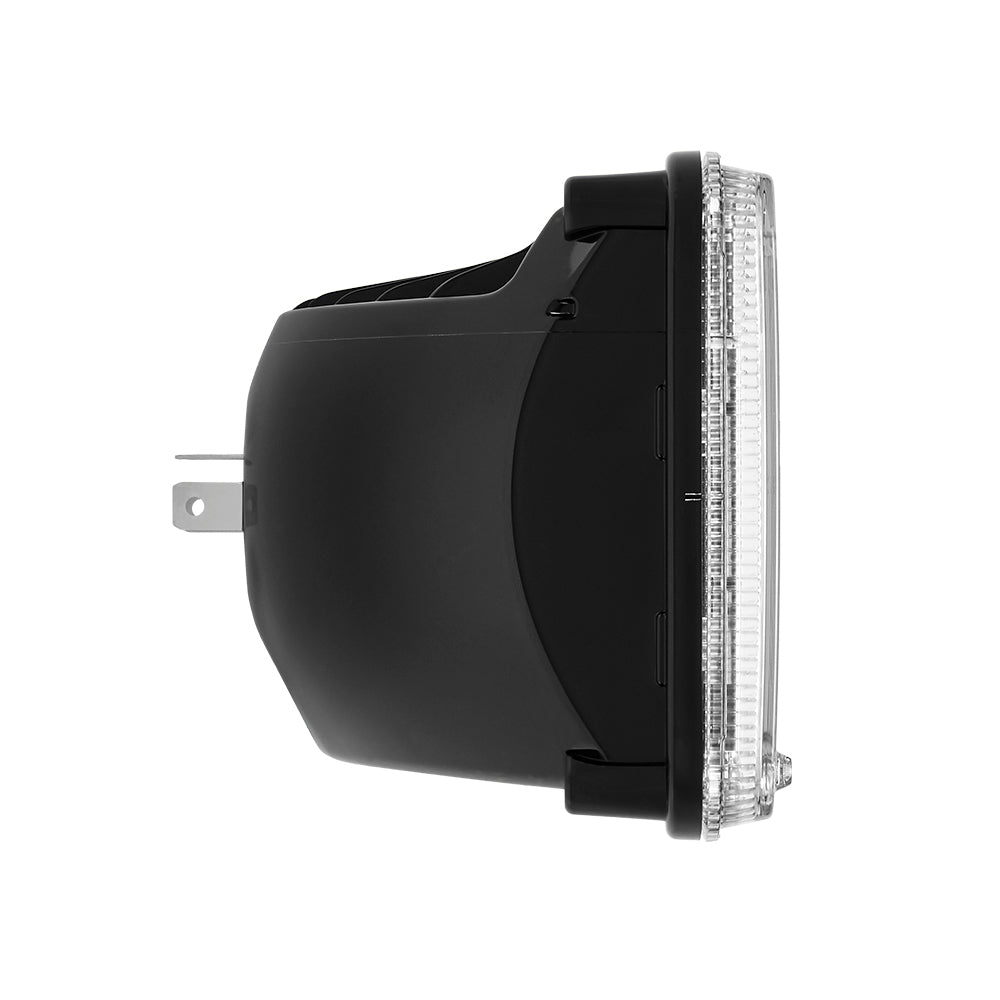

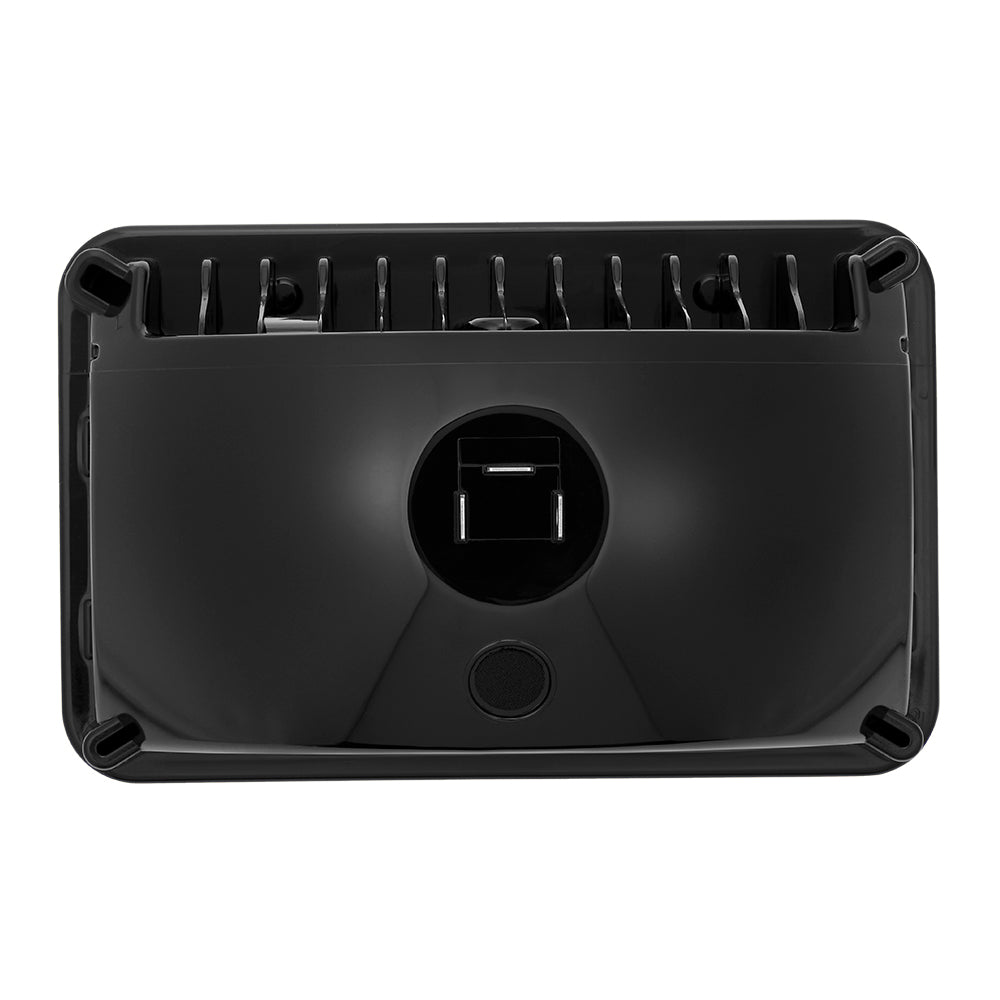

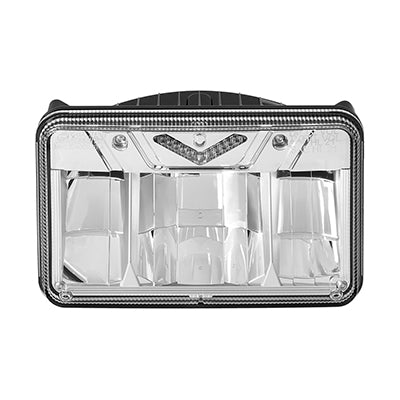

MHLE-4X6LO-A 4" X 6" Head Lamp Low Beam
MHLE-4X6LO-A 4" X 6" Head Lamp Low Beam
Regular price
$94.50 USD
Regular price
Sale price
$94.50 USD
Quantity
Couldn't load pickup availability
Description
The MHLE-4X6LO-A is a 4” X 6” LED low beam headlight designed for 4-lamp systems. It is our “GEN2” version of the popular MHLE-4X6LO and includes proprietary styling elements and our signature “V” design. It is designed to be used in tandem with the MHLE-4X6HI-A high beam. The MHLE-4X6LO-A is compatible with DRL circuits using PWM (pulse width modulation) voltage, and is non-polarized allowing it to fit more applications. It is DOT FMVSS108 / CMVSS108 compliant, features a polycarbonate lens and housing, and is backed by a 3-year warranty.
Features
- DOT FMVSS108 Compliant LED
- For 4-Lamp Headlight Systems
- Mechanical Aim Compliant
- Visual Aim Compliant
- Polycarbonate Lens & Housing
- Non-Polarized
- 3 Year Warranty
- Replaces MHLE-4X6LO
Specifications
- Voltage: 12/24VDC
- Amp Draw: 0.7A 12V / 0.4A 24V
- Dimensions: 6.6” W x 4.2” H x 3.4” D
- Connector: 3-Pin Male H4
- LEDs: 6
- Legal Heading: DOT L VOL SAE HL
- DOT/SAE: FMVSS108, J2650
*DRL Compatible - Low Beam comes on with PWM DRL circuit
