Donaldson
SKU:P114931

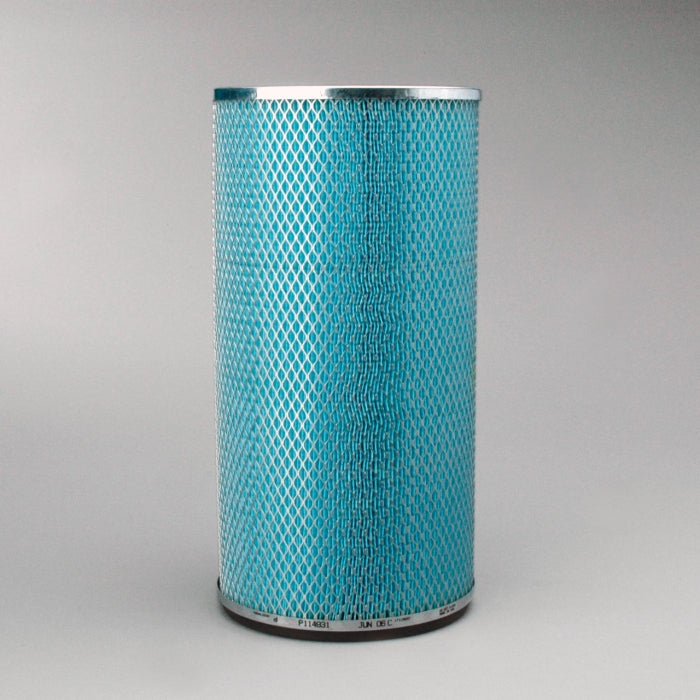

P114931 AIR FILTER, SAFETY
P114931 AIR FILTER, SAFETY
Regular price
$60.19 USD
Regular price
Sale price
$60.19 USD
Quantity
Couldn't load pickup availability
Why Choose Donaldson Safety Filters?
Safety filters have two functions: to act as a backup to the primary filter
and to protect the engine during primary filter servicing.
• Serve as a backup filter in case of primary filter damage
or improper installation.
• Prevent contaminants from entering the clean side of the air intake system
during primary filter servicing.
• Designed to plug rapidly if contamination finds its way past the
primary filter, alerting operators about an issue.
• Recommend that safety filters are replaced with every third primary
filter change unless there has been a failure of the primary filter.
Attributes
| Overall Length | 17.04 inch (432.9 mm) |
| Outer Diameter | 8.66 inch (219.96 mm) |
| Inner Diameter | 7.06 inch (179.2 mm) |
| Length | 16.66 inch (423.2 mm) |
| Gasket ID | 7.50 inch (190.5 mm) |
| Efficiency | 99.6 |
| Efficiency Test Std | ISO 5011 |
| Rated Flow LR | 1271 cfm (36 m³/min) |
| Rated Flow HR | 812 cfm (23 m³/min) |
| Family | STG |
| Primary Application | DONALDSON STG16 |
| Type | Safety |
| Style | Round |
| Media Type | Safety |
| Flow Direction | Outside-In |
Cross Reference
AC DELCO:A447C
BALDWIN:PA1905
CASE/CASE IH:M1950526
CATERPILLAR:6N6072
CUMMINS:3233498
DONALDSON:P182039(Primary Filter)
FIAT:45928
FLEETGAURD:AF883M
FORD:SFD45253
FREIGHTLINER:DNP114931
INTERNATIONAL:942625C1
JEEP:J3564086
KAWASAKI:YYP128355
KENWORTH:P145894
KOMATSU:988638
MERCEDES-BENZ:A00309489
VOLVO:79200556
WIX:42132
YANMAR:40000007360
