Donaldson
SKU:R800103

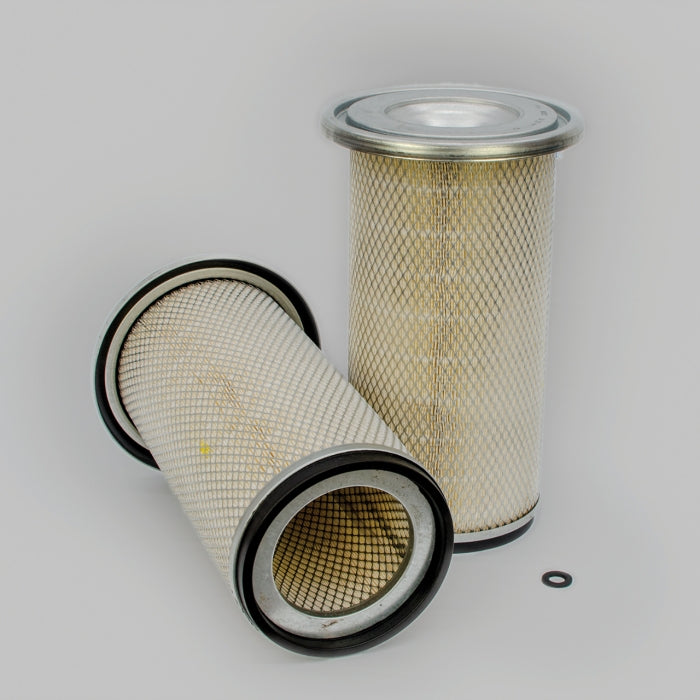

R800103 AIR FILTER, PRIMARY ROUND
R800103 AIR FILTER, PRIMARY ROUND
Regular price
$114.70 USD
Regular price
Sale price
$114.70 USD
Quantity
Couldn't load pickup availability
Why Choose Donaldson Air Filters?
Strong, reliable gasket is compressed against the
air cleaner housing to create a tight seal.
• High-efficiency cellulose media performs across
a wide range of heavy-duty engine applications.
• Corrosion resistant, coated steel liners support media
during operation and help maximize airflow.
• Pleatloc™ feature ensures uniform pleat spacing
and prevents media from bunching to promote longer service life.
Attributes
| Overall Length | 15.50 inch (393.7 mm) |
| Outer Diameter | 7.36 inch (187 mm) |
| Inner Diameter | 4.78 inch (121.41 mm) |
| Length | 15.00 inch (381 mm) |
| Bolt Hole Diameter | 0.67 inch (17 mm) |
| Efficiency | 99.9 |
| Efficiency Test Std | ISO 5011 |
| Type | Primary |
| Style | Round |
| Media Type | Cellulose |
| Flow Direction | Standard |
Cross Reference
BALDWIN:PA2788
CASE/CASE IH:161863A1
CATERPILLAR:0964175
FIAT:2451U3113E
FLEETGAURD:AF4567
HITACHI:HJ129907
KUBOTA:4129910
LINK BELT:KRH0787
MITSUBISHI:417575H00
WIX:46600
